LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function

Adedi:	1
fiyat:	19999
standard packaging:	Deniz sevkiyatı için ahşap kutu ambalajı
Delivery period:	10 iş günü
Ödeme yöntemi:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Ayrıntılar Bilgi

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri

Marka adı

Sertifika

Model numarası

PGB-5100

Tahrikli tip:

Elektrikli

Karıştırma Yöntemi:

Dinamik veya Statik

鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆:

10L, 25L, 40L Opsiyonel

Temizleme işlevi:

- Evet.

Vakum işlevi:

- Evet.

Isıtma Tutkalı:

- Evet.

pompa:

Dişli, Vida, Dh Pompa

Doğruluk:

Ab Oranı:

1:1-10:1 ayarlanabilir

Yapıştırma Hızı:

5-66g/5s

Taşıma Paketi:

Ahşap ambalaj

Ticari marka:

Kaynağı:

HS kodu:

8424899990

Yetenek temini:

ayda 50 adet

Kesinlik:

Yüksek hassasiyet

Durum:

Sertifika:

Garanti:

12 Aylık

Otomatik Derecelendirme:

yarı otomatik

Kurulum:

Dikey

Özelleştirme:

Kullanılabilir Kişiselleştirilmiş İstek

Vurgulamak:

Heating PU Dispensing Machine

Vacuum Function PU Dispensing Machine

Silicone Potting PU Dispensing Machine

Ürün Tanımı

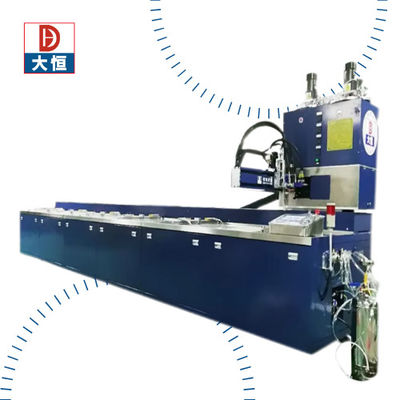

LED Strip Silicone Potting Machine PU Dispensing Machine With Heating Glue And Vacuum Function

Silicone Potting Machine for LED Strip

Specification:

Model No:	PGB-5100
Mixing Ratio	100:100-10:100(1:1-1:10) Adjustable
Metering precision	±1%
Outflow speed	1g/sec-15g/sec
Mixing precision	±1%
Mixing mode	Dynamic mixing /Static mixing
Glue Viscosity	1cps-30000cps (mPa·s)
Control mode	PLC + Touch Screen
Control system	Independent R&D
Measuring mode	Stepping motor/High-precision, wear-resistant, long-life Gear pump
Working voltage	AC 220V 50Hz/60Hz
Power requirement	3.55KW
Air pressure requirement	4.5-8KG
Machine Dimension	5900(L)1150(W)2000(H)mm
Weight	approx 600 KG
Work environment	Humidity: 20%~98%RH; Temperature: 0~+40°c

Suitable Material: For waterproof, adhesive, fixed two-component adhesive. (Crystal or less additive glue, Silicone, epoxy, polyurethane(PU), etc.)

Applications: LED products, Crafts, Electronic components. (Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter etc.)

Silicone Potting Machine for LED Strip

Automatic glue filling machines are essential tools for the automatic proportioning and real-time filling of two-component AB glue, with ratios ranging from 1:1 to 10:1. These machines, such as the Liquid Dispenser Machine for AB Potting Compound, are commonly used in industries like LED lamp manufacturing, power modules, sensors, and transformers, where precision and efficiency are crucial.

Main Technologies

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 4

Overview of Glue Dispensing Machines

A glue dispensing machine, also known as an AB glue dispensing machine, automates the process of filling products with glue. These machines feature glue dispensing systems designed for automatic proportioning, quantitative filling, and circulation management, ensuring products achieve optimal sealing, fixing, and waterproofing. This automated operation resolves issues related to low efficiency and poor quality in traditional methods, significantly reducing labor costs and enhancing productivity and product quality.

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 5

Features of Glue Dispensing Machines

The glue dispensing epoxy resin dispensing machines offer high cost-effectiveness, With a single device capable of replacing 2 to 5 workers, enabling a return on investment within six months.

Function	Introduction	Usage Advantages
Automatic Material Supplying	Automatically supply the materials according to the set ratio, and fill it to the mixing tank with constant speed and flow-ability	Compared to traditional manual material preparation, saving more labor, convenient operation, keeping the working environment neat, and clean and the filling amount is more accurate.
Dynamic Mixing	Automatically dynamic mixing of the A&B compounds, high-speed mixing, and good sealing ability to avoid air bubbles	Timing quantitative, dynamic mixing and using in one machine, no need to do the vacuum additionally, saving labor costs, convenient operation, improve production. Dispensing to products directly after stirring and degas, make the most use of AB mixture before it’s solidified.
Timed Quantitative Filling	Set up and save the settings programs for one series of products, the setting can be invoked for future usage. The dispensing volume and speed can be adjusted freely in the software system.	Dispensing volume more accurately and productively. The potted products will be more homogeneous, surface flat, and of good quality.
Low Liquid level Alarming System	When the material in the tank is not enough or the machine, The machine will show a warning signal to remind re-filling.	Humanized engineering design, avoids serious damage with fool-proof settings.
Dripping-proof Function	When the dispensing head needs to move accurately and finish the potting process. The moment the resorption function starts ensuring the glue won’t drop off to dirty the products or working table.	To avoid the glue polluting the work table or affecting the outlook of the products.
Timing- Dispensing (self-discharging function)	According to different glue features, users can set up the dispensing output speed and interval time to avoid the glue cured in the mixing tube.	Avoiding the glue cured in the mixing tube while workers short-break and shift switching.
AB Bucket Sealing (AB tank sealing)	There's a professional sealing rings to ensure the AB tank in good vacuum status for around 48 hours per time.	To avoid the sensitive material especially the hardener of PU to be crystallization.
Cleaning Function	Clean and wash the A&B valve automatically.	Convenient, fast, clean. Dynamic mixing to avoid the machine was stuck by AB mixture
Automatic Stirring Function	Can stir the filler materials, to avoid sedimentation.	To avoid the sediment of the AB materials to block the mixing tube, ensure the glue ratio mixing equalization and quality reduce the waste, keep the working environment clean, and improve the production.
Heating Function	Preheat materials in the tank, pump, and pipes to assure constantly temperature .	Make sure the materials are warm, movable and potting quality

Product Applications

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 6

Glue dispensing machines have a wide range of applications, including but not limited to:

LED Display Screens: Automated liquid dispensing systems ensure seamless assembly and durability.

LED Energy-Saving Lamps: Efficient adhesive dispensing systems for energy conservation.

LED Power Supplies: Precision dispensing for insulation and protection.

Computer Power Supplies: Safeguarding components against environmental factors.

Sensors and PCB Boards: Fluid dispensing systems for protecting delicate circuits.

Solar Panels and Coils: Ensuring structural integrity and environmental resistance.

Soft Light Strips and Point Light Sources: Optimizing performance with precise glue application.

Gluing and Potting of Electronic Components

Glue and potting play a crucial role in protecting electrical components and extending their service life. Potting, achieved using automated adhesive dispensing systems or semi-automatic glue potting machines, involves filling devices with polyurethane, silicone, or epoxy resin. Once cured, these materials become thermosetting polymers, providing bonding, sealing, and protective coatings.

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 7

The Role of Glue Potting in Electronics

Protecting Electrical Components: The primary function of electrical potting glue is protection. Potting dispensing machines apply glue to circuit boards, offering bonding and impact resistance, thus safeguarding components against vibrations and impacts.

Extending Service Life: Potting protects components from heat, moisture, temperature fluctuations, and UV exposure, thereby prolonging their service life.

Improving Practicality: Cured potting glue forms a moisture-proof and waterproof layer, enhancing the usability of electrical devices even in harsh outdoor environments.

Potting also helps prevent oxidation and corrosion by isolating components from moisture and oxygen, ensuring reliable performance.

IC Chip Semiconductor Glue Filling

Production Process: The production of chips involves complex steps like design, production, packaging, and testing. Chip potting glue facilitates easy disassembly, allowing for corrections without compromising functionality.

Temperature Resistance: Once cured, the glue withstands extreme temperatures, maintaining elasticity without cracking, crucial for outdoor applications.

Moisture Protection: Despite potential cracking from thermal expansion, the glue maintains its moisture-proof performance, ensuring chip integrity.

Main Application Industries:

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 8

Automotive and Industrial Electronics

Electrical Industry

New Energy and Lighting

Aviation, Aerospace, and Navigation

Communications and Power Supply

Power Tools and Household Appliances

Main Product Applications

Sensors, Transformers, and Ignition Coils

Capacitors, Module Power Supplies, and Control Systems

Motors, Inverters, and Electronic Components

Applied Resins:

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 9

The machines accommodate two-component resins like epoxy, polyurethane, and silicone, which are essential for effective potting and encapsulation.

Maintenance and Care of Glue Filling Machines

Proper maintenance is vital for the efficient operation and longevity of glue-filling machines.

Here are key maintenance practices:

LED Strip Silicone Potting PU Dispensing Machine With Heating And Vacuum Function 10

Regular Cleaning: Clean nozzles, pipes, and filters regularly to prevent clogging.

Lubrication Check: Ensure adequate lubricating oil levels, adding or replacing as necessary.

Electrical Inspection: Regularly check electrical components for faults, repairing or replacing as needed.

Avoid Overload: Prevent overloading to avoid equipment damage.

Pressure Checks: Monitor pressure settings and adjust as needed.

Glue Quality: Inspect glue quality, replacing any deteriorated or contaminated glue promptly.

Train Maintenance Personnel: Equip staff with the knowledge to operate and maintain the machines correctly.

Maintenance Records: Keep detailed records of maintenance activities for analysis and troubleshooting.

These practices ensure that glue-filling machines continue to operate efficiently and effectively, meeting the demands of modern industrial applications.

Customization:

Daheng Automation specializes in potting and dispensing systems for various resin applications, including 1- and 2-component polyurethanes, epoxies, silicones, and more. We provide solutions for potting and encapsulation to protect products from harsh environments, including vacuum and atmosphere pressure options. Our offerings include automatic and semi-automatic fluid dispensing machines, dual-component systems, and high-precision dispensing robots. We have the right equipment for adhesive, epoxy, or silicone applications to meet your needs.

D&H accepts a variety of customizations including size, number of tanks, temperature control, etc.

Please contact us for more information!
